CE SOLAR KEYMARK 200LStainless Steel Compact Heat Pipe Solar Water Heater with 3 Legs
Model: IP-20-PRO

Unique Design:

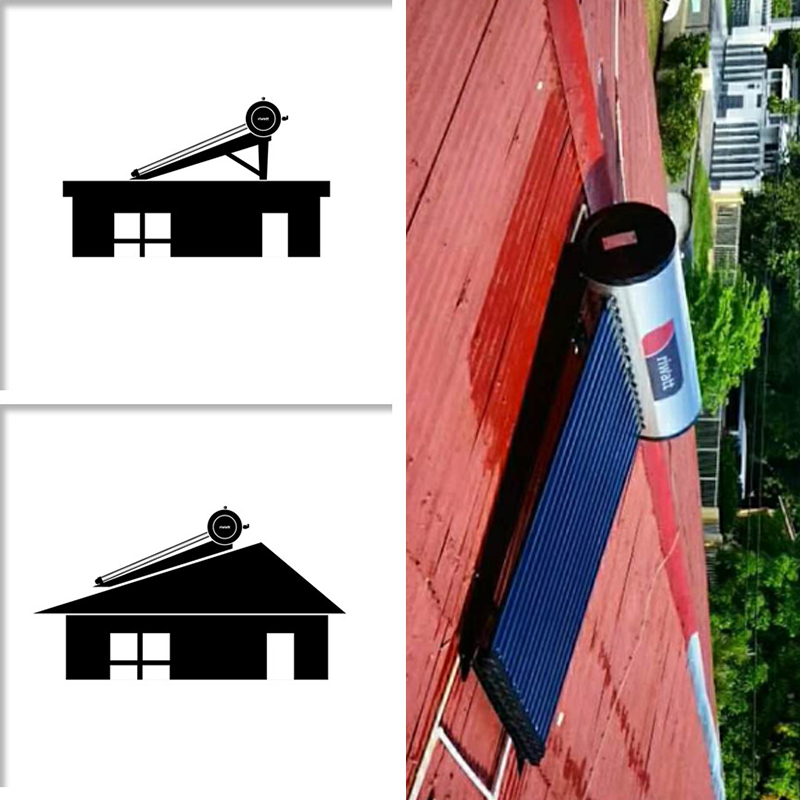

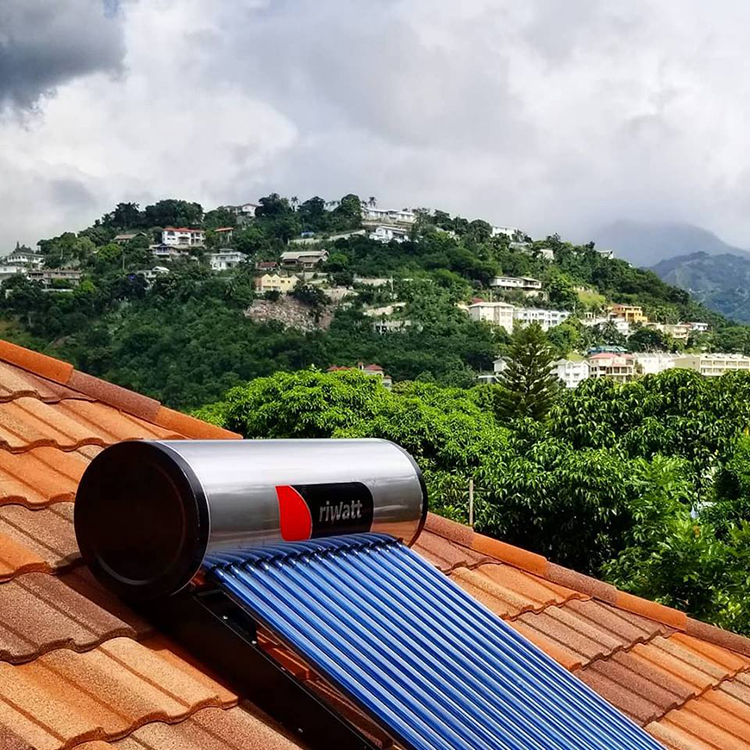

-  with ADJUSTABLE bracket (suitable for both flat roof and sloop roof),
-  New designed vacuum tube holder,

-  Eletric heater on water tank cap instead of bottom of the water tank.
-  New design electric heater element cover (biggest cover in the market).....
-  316L stainless steel socket.

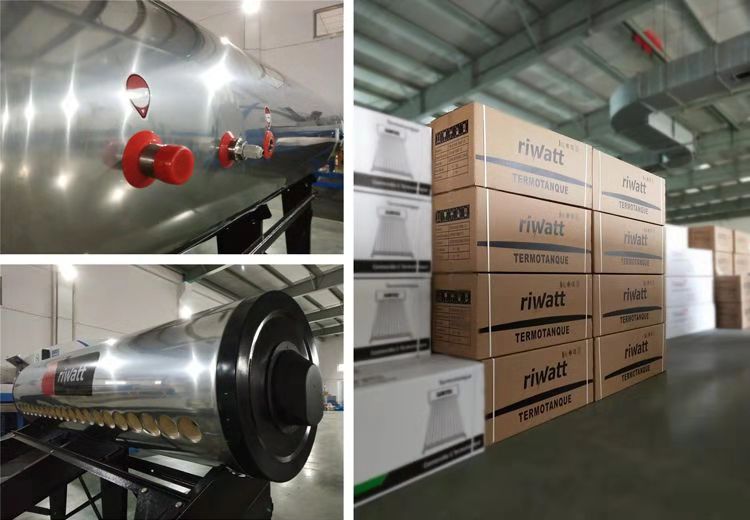

-  Inlet/outlet/magnesium anode/sensor....located in the rear of water tank

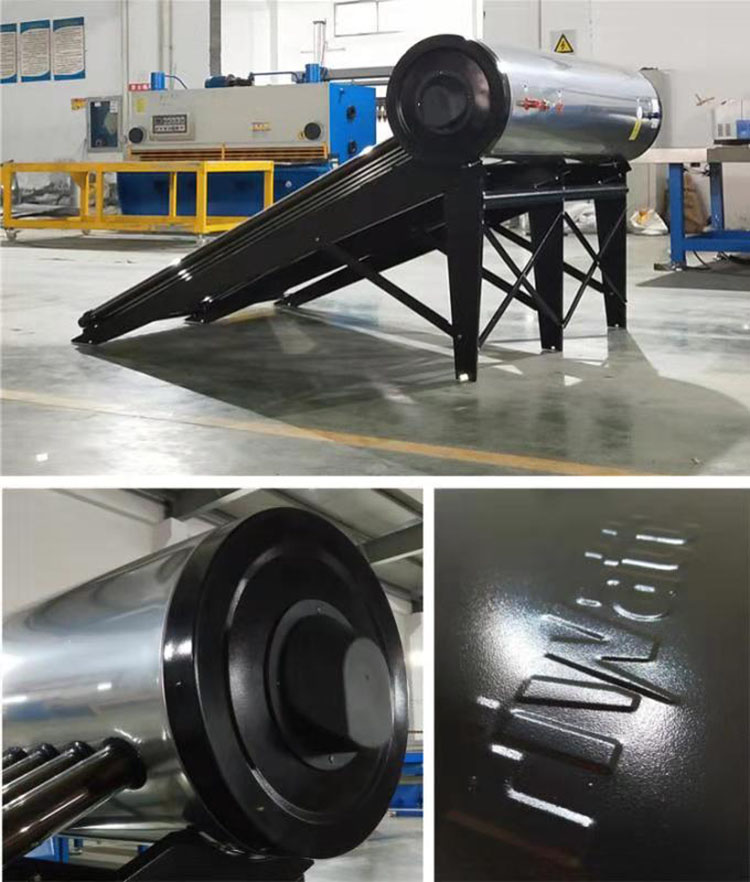

-  3 LEGS for 200L solar water heater
-  Heat Pipe Condenser 80mm instead of 65/70mm

Solar Water Heater features

1.Adopts the best conduction performance metal- heat pipe (copper)
2.Can be used all year round in the cold climate
3.High efficiency, rapid warming. Heat pipe in vacuum tube could transfer hot energy to cold water in pressurized water tank rapidly
4.The whole pressure of the system is up to 1.5kg/M2, the inlet could connect the tap water directly, the max pressure can be 0.7Mpa
5.No water in the tube, one tube broken don't influence the system working
6.The design for inner tank is reasonable and scientific, which could hold 100, 000 times fatigue test without any damage

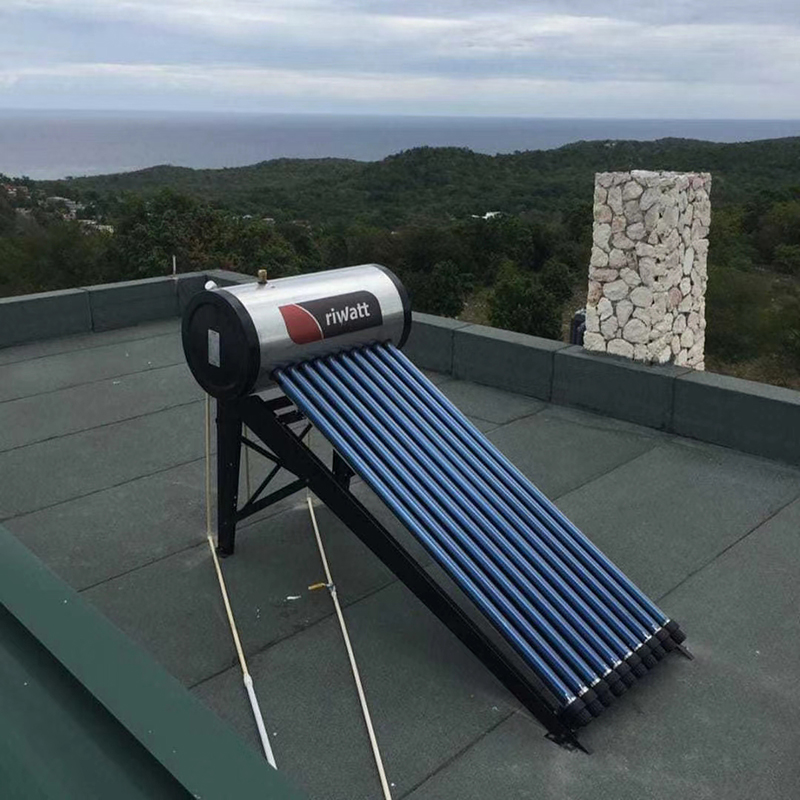

7.Dual-purpose brackets for both flat and inclined roof
8.The system is pressurized,it keep a constant temperature of water in the tank, avoid the problem came from water level controller malfunction which could cause water flow out


Solar Water Heater working principle:

1.The pressurized water tank has no exhaust hole, therefore, it must bear the pressure came from tap water and hot water,when use, the hot water comes out because of water pressure.
2.Vacuum tube absorbs solar energy, and conductive copper pipe transfers the heat into the pressure solar water heater tank. In this case, the water inside the tank becomes hot
3.No water in the heat pipe makes the whole system could bear pressure
