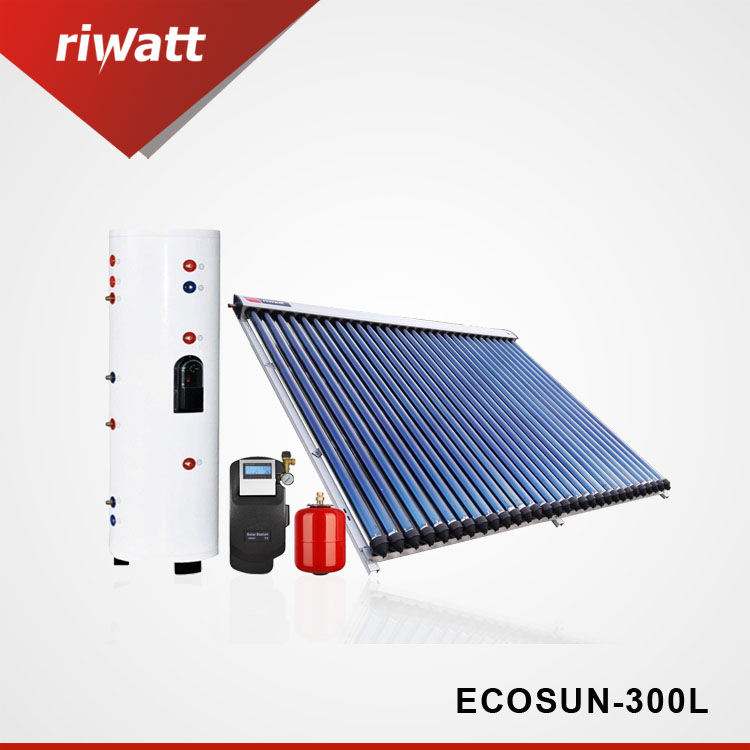

Split Pressurized Solar Water Heater

solar water heater.jpg" width="750" height="1071" alt="" />solar water heater accessories 004.jpg" width="750" height="1071" alt="" />solar water heater accessories 003.jpg" width="750" height="1071" alt="" />solar water heater accessories 002.jpg" width="750" height="1071" alt="" />solar water heater accessories 001.jpg" width="750" height="1071" alt="" />solar water heater accessories 006.jpg" width="750" height="1071" alt="" />solar water heater accessories 007.jpg" width="750" height="1071" alt="" />

Split Pressurized Solar Water Heater Working Principle:

1. The collector absorbs solar energy and transmits it to the water tank through circulation.
2. When the temperature of the collector reaches the set value, the controller starts the circulation pump automatically.
3. The circulation pump makes heat-conducting liquid circulate automatically.
4. The heat-conducting liquid transfers heat to water by lower heat exchanger in the water tank.
5. When the temperature difference between solar collector and tank doesn't reach the set value, the circulation pump will be shut automatically.
6. In case the temperature of the water tank does not reach Tmax, Electric Heating Element will start to work automatically.

Split Pressurized Solar Water Heater Features

1. Collector separates with the storage tank. The tank can be put anywhere of the house.
2. The collector can be put on both tilted roof and flat roof
3.Module design, arbitrary combination, harmony with the building perfectly
4. Intelligent control and automatic operation
5. Anti-freeze: No water inside the tubes when it works
6. The system controller has the anti-freezing function is that the temperature circulation will operate while it reaches the fixed temperature
7. Multifunction: Bathing, washing, domestic heating
8. Workable at anytime and enjoyable solar
