Swimming-Pool-Heat-Pump-with-Wifi-Fnction

Swimming Pool Heat pump Water Heater R410A with Wifi setting function

A Swimming Pool Heat Pump circulates Swimming pool's water, the water pass from filter and heater. The Heat Pump has evaporator coil which draws outside air and returns the water back to the pool.

Using high-technology of heat pump, 65-80% of running cost can save compared with other heating machines(such as the fuel gas boiler, electric boilers, etc).Absolutely no air pollution.

Flow switch built-in, automatic defrost, antifreeze protection function.

Using patent technology  titanium heat exchanger coil,more stable performance, higher COP value.what's more, the heat exchanger is high pressure-bearing.

Rated Working Condition: dry bulb temp: 20℃, wet-bulb temp: 15℃, cool water temp: 15℃; hot water temp: 55℃.

Key Components

Compressor :Copeland Stroll

Condenser :Titanium Tube in Shell Heat Exchanger

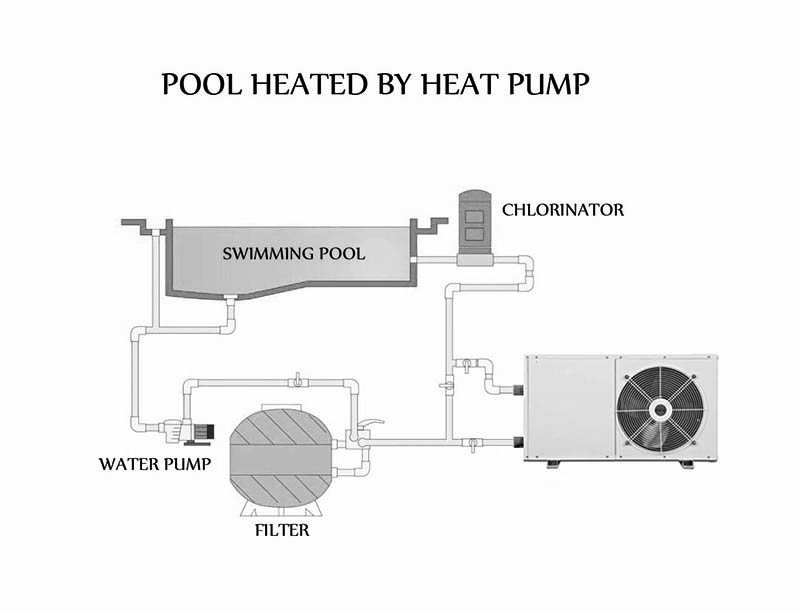

Installation Digragram

1.Easy stallation :

Air to water heat pump is most easily installed.

2.Heat pump also can be connected with solar collector , energy saving will up to 90% .

when the water temp cant reach the preset water temp, then the heat pump will start operating. Even in the winter, heat pump will be the mainly use in stead of the solar heater.

3.Installation components :

circulation water pump, three way valve, water flow switch , water pipes, filter , safe valve  and etc.

Our company can supply circulation water pump , three way valve, safe valve,  if you need, kindly let us know in advance.

Economic Analysis

Compared with solar water heaters, gas water heaters and electric water weaters, the energy cost saved by riwatt heat pump water heaters is shocking.

Under 20℃ environment temperature and 15℃ water temperature condition, sample for heating 200L water to 55℃.

Swimming Pool Heat pumps are specially designed and engineered for water temperature control of swimming pool.

The units work as chillers in summer and heat pumps in other seasons, offering the most energy efficient pool chilling and heating.

Compared to gas, oil, or electric heaters, operation cost of swimming pool water chiller & heat pumps is up to 60%~80% less, saving your expenses in energy costs each year.

Swimming Pool Heat Pump is especially suitable for the following sites: household swimming pool, commercial swimming pool.
