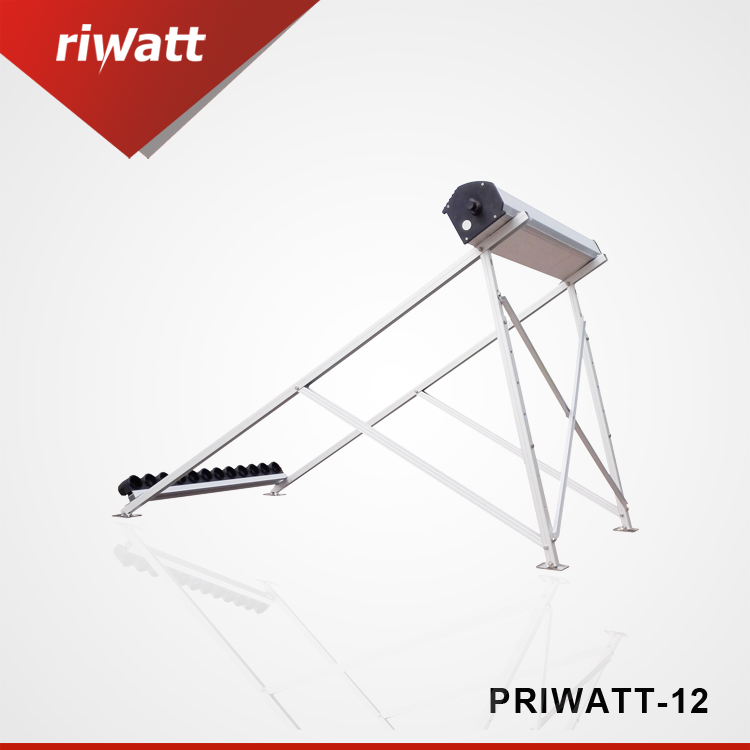

Priwatt 12 Solar Themal Collectors

Key Points:
Model: PRIWATT-12

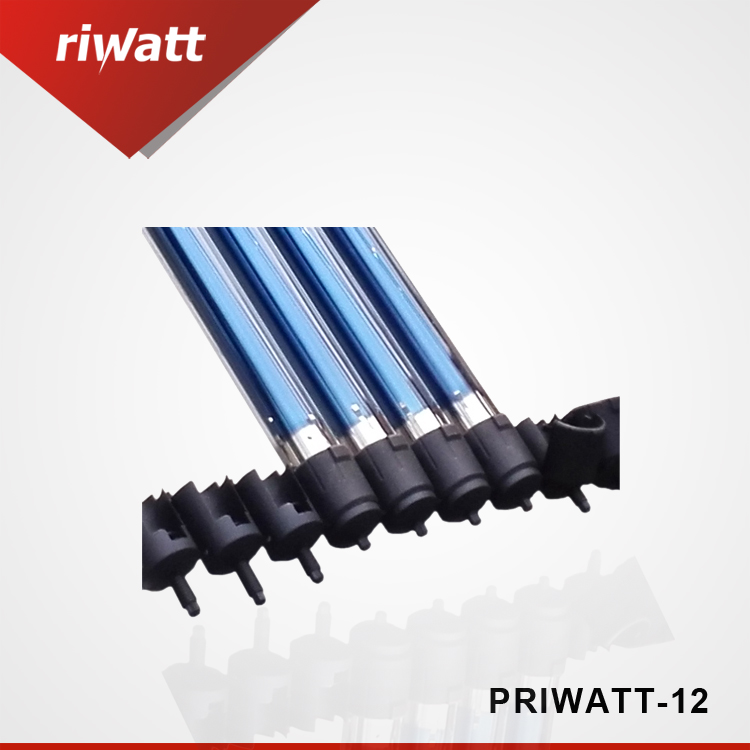

 •  Glass tube dimensions: 58mm x 1.8m ,12 tubes.
 •  Inner manifold : copper header Ø45*0.9mm
 •  Heat pipe material: Copper ,0.7mm
 •  Outer manifold: Aluminum-alloy ,thickness 2.0mm
 •  Insulation:  rock wool or polyurethane foam,50mm
 •  Inlet & Outlet: Ø22 or 3/4 inch
 •  Bracket : adjustable 3.0MM AL.ALLOY
 •  Installation angle: 20-80 degree
 •  Operating Pressure: 0.6-0.8 MPa
 •  Hail resistance: 25mm
