AC/DC HYBRID Solar PV Power Water Heater

Quick Details

Warranty:More than 3 years for water tank 10 years for solar panels

Application:HOUSEHOLD

Power Source:Electric, SOLAR

Circulation Type:Indirect / Closed Loop (Active)

Connection Type:SPLIT

Installation:Wall Mounted

Housing Material:STAINLESS STEEL

Capacity:50/60/80/100L

Power input:2000W

Rated current:9.1A

Rated Voltage:220V

Frenquency:50HZ

Pressure: 0.7Mpa

Solar panels: 280W solar panels

 Home Using Solar Power Electric Heater

I.Description:

The solar and electric hybrid water heater is suitable for hot water bathing and washing (not drinkable) in homes, enterprises, service industries and other places.

II.Features:

1.  Large screen temperature indication with heating indicator light, working status at a glance.

2.  Microcomputer control, heating and insulation automatic control.

3.  The inner liner is made of high-quality steel plate and equipped with a liner protection device, which is anti-corrosion and pressure-resistant and durable.

4.  It has multiple safety protection functions such as leakage protection, anti-dry protection, over-temperature protection, over-pressure protection, and leakage warning.

5.  The insulation layer is foamed with thickened polyurethane, which has good heat preservation effect and saves energy.

6.  It has a wide range of water pressure and large capacity, and can be used for water at the same time.

7. Optional choice----When it's longtime rainy days or in Winter,it can be used by connecting home AC electricity.

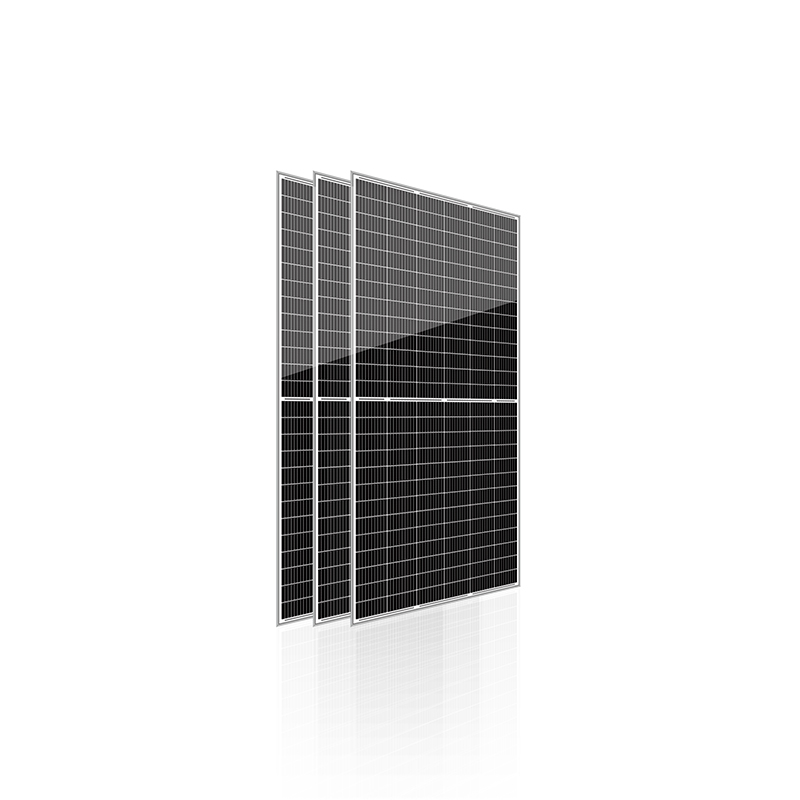

SOLAR PANELS:

2* 280W Solar Panels

25 years Warranty

Highest conversion efficiency of 17%

Anti-reflective and anti-soiling surface power

loss from dirt and dust

Excellent mechanical load resistance

PID Resistant,High salt and ammonia resistance

Current grading process

Positive tolerance  0-+5W

WATER TANK:

 80L tank with LED DISPLAY

>Solar panel generating, producing DC power,one wire connection,no energy loss

>Fixed temperature water

Original design heating pipe ,high hot water output rate

>Original design teflon design, quick heating, long life span

>Original design double drain contamination

>3 step protection,Safer

Mounting Bracket

Customized design with CAD drawing Flat/pitched roof, soil/cement ground installationAluminum/Galvanized

steel;Customized

Display

The key is used to display the function settings. If there is no operation for 3 seconds, the system automatically enters the heating mode. (When first time using, the default factory setting is 2000W heating power, and the temperature is set to 75°C)
