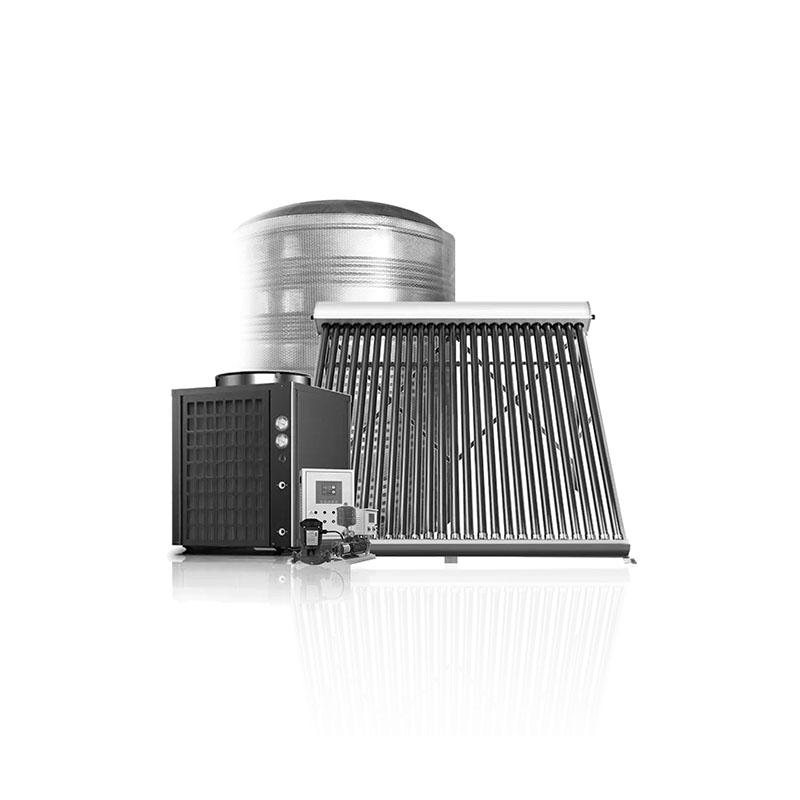

3000L-HOTEL-SOLAR-HEAT-PUMP-HYBIRD-WATER-HEATING

 Model Number:3000L-PRO
Type:Evacuated Tube
Installation:Freestanding
Certification:CE
Circulation Type:Direct / Open Loop (Active)
Connection Type: Split
Capacity:3000
Housing Material:Stainless Steel
After-sales Service Provided:Free spare parts
Warranty:5 years
Application:OUTDOOR, HOTEL, Commercial, Household
Power Source:Solar

  • Specifications

  • Diagram

  • Download

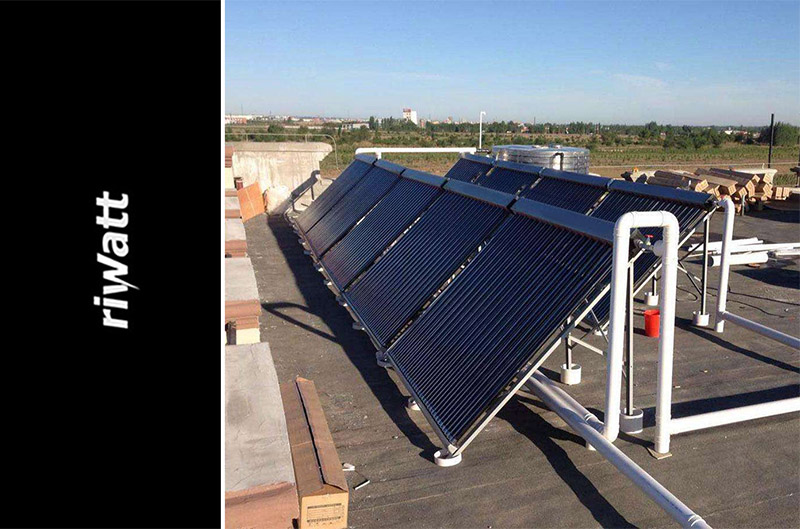

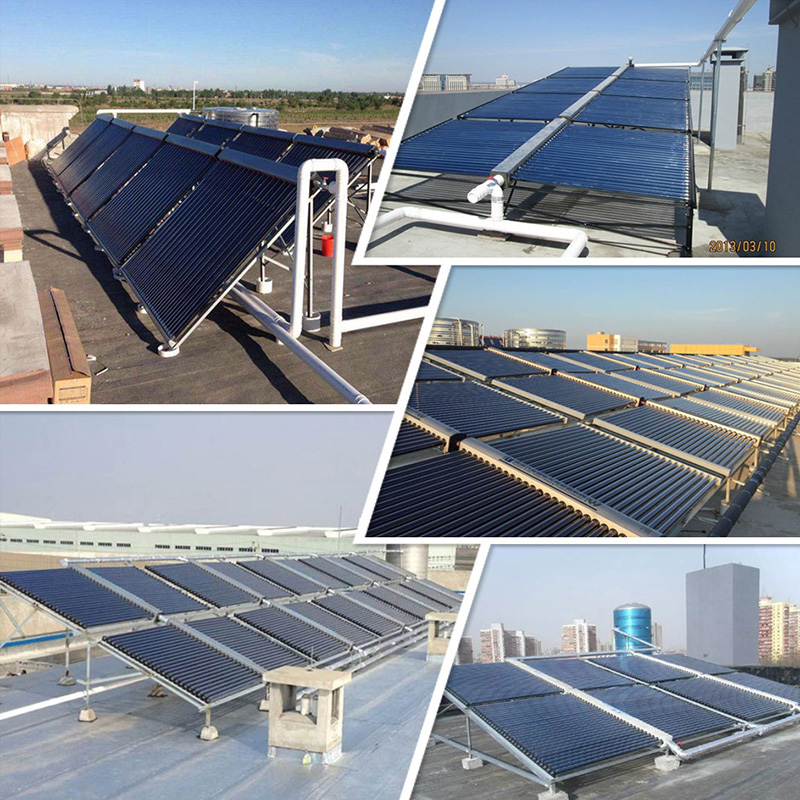

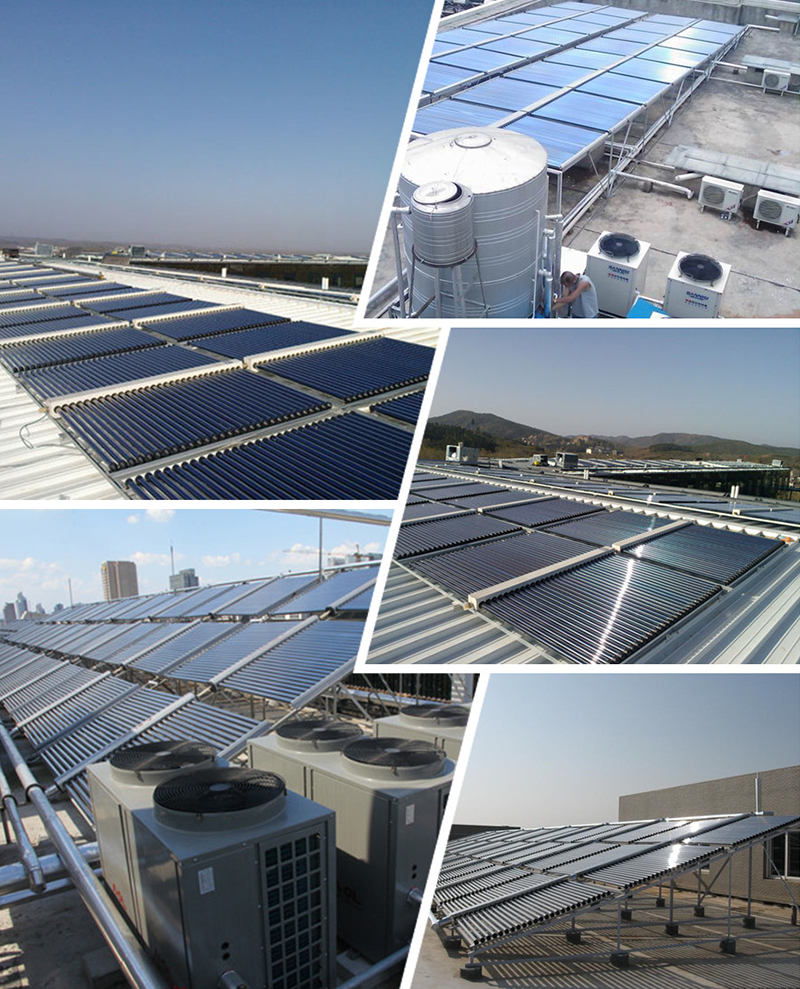

Large scale solar collectors are formed to generate energy and supply large amount of hot water.
These solar collectors are combined with large tanks and working station for commercial use.
It is professional in central hot water supply of hotel, school, hospital, residence ect.

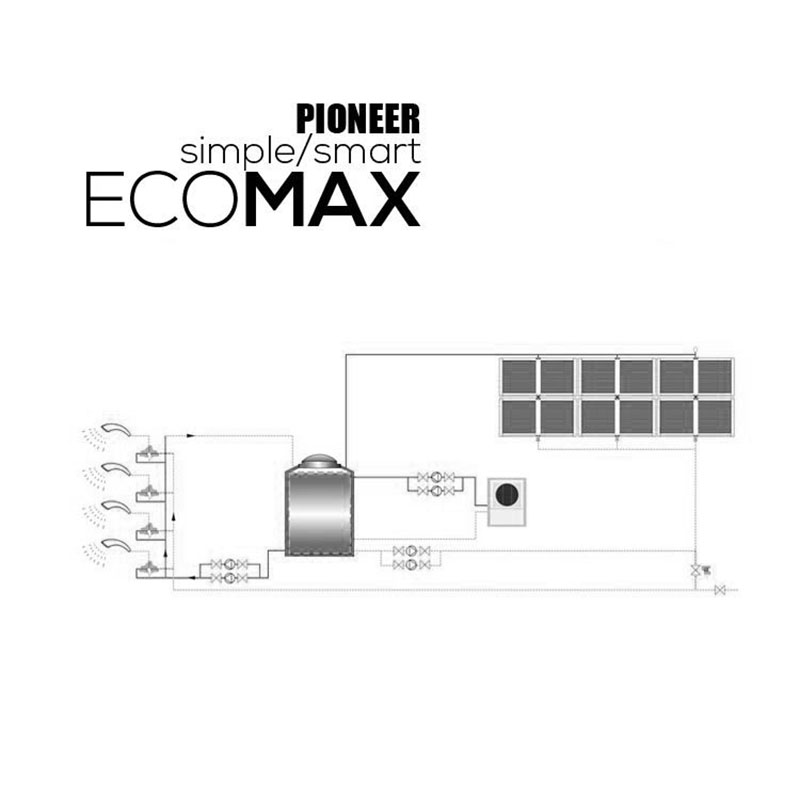

1. Solar Water Heater Working Principle:

1) Firstly, the storage tank shall be filled with cold water, the collector loop shall be pumped with water
2) The water in collector loop then will be heated with solar radiation to vacuum tubes

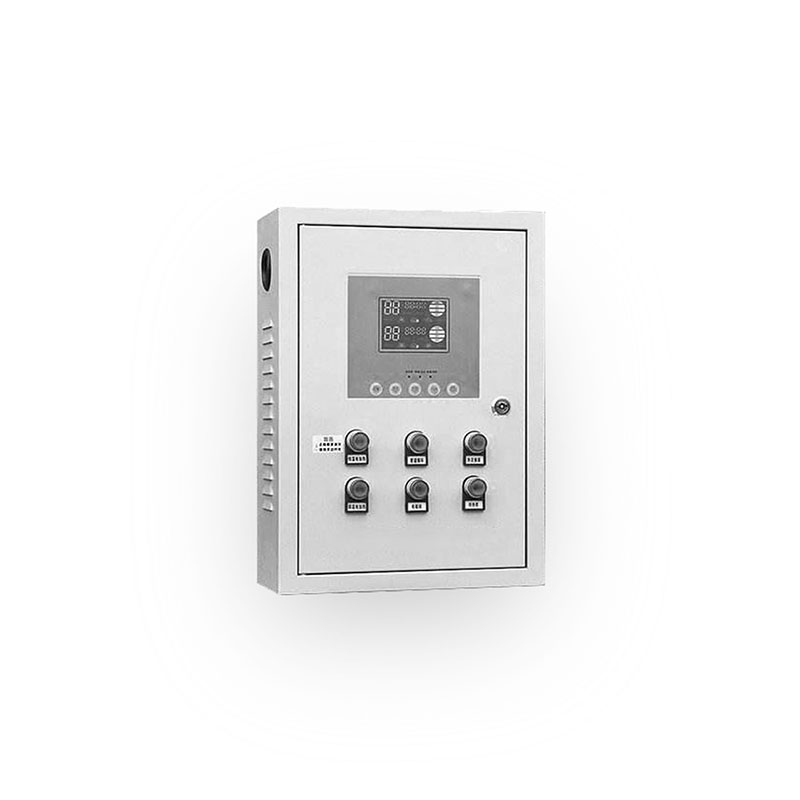

3) When temperature discrepancy sensed between solar collector and storage tank reaches set value in controller, the controller shall start the circulation pump automatically

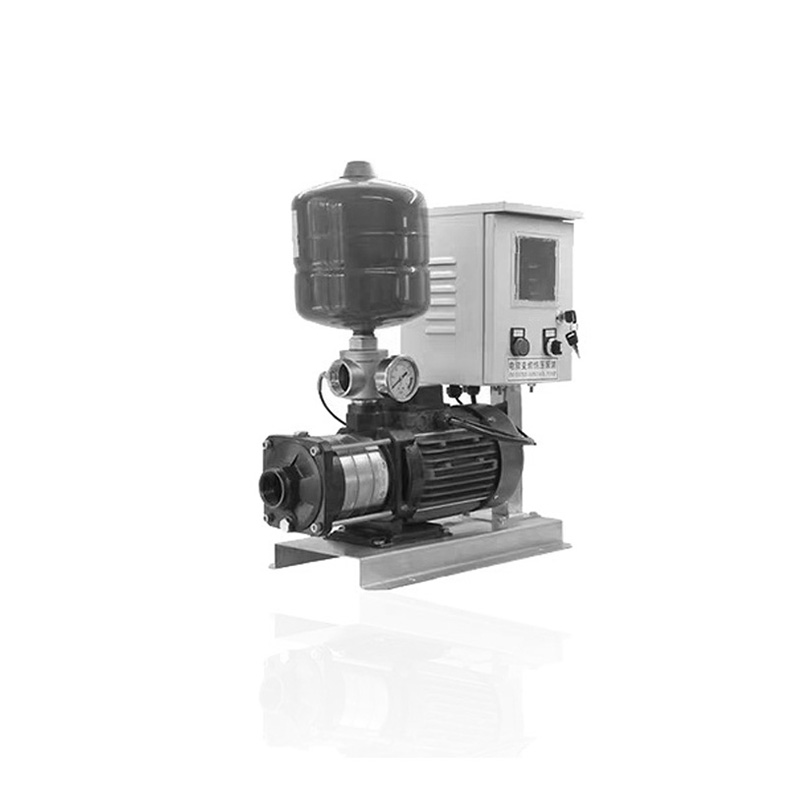

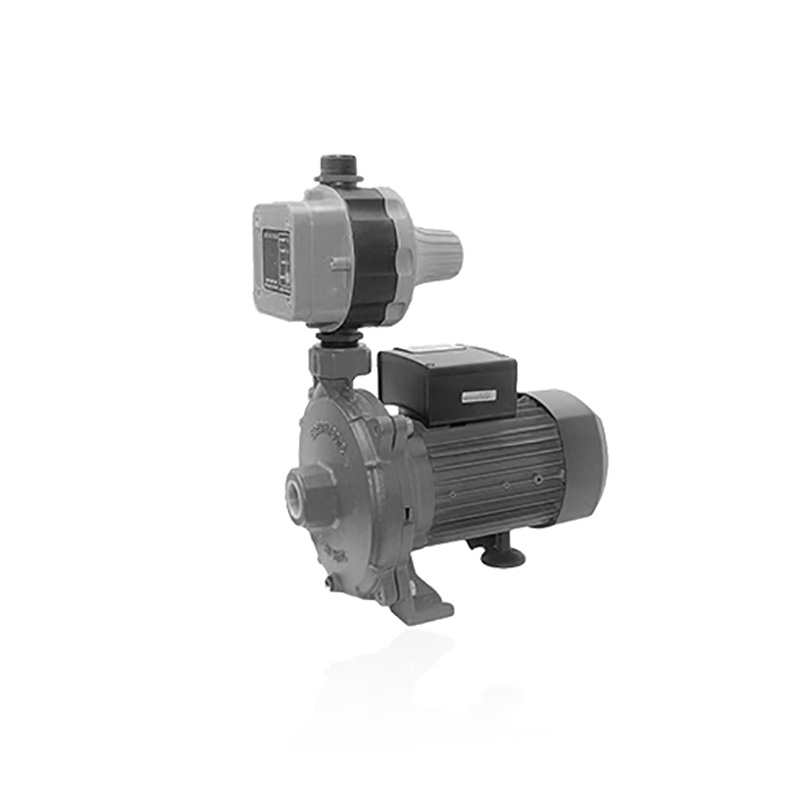

4) The circulation pump makes water circulate in the loop
5) Hot water would be pumped into storage tank and the loop again be pumped with cold water from the bottom of storage tank
6) In case the temperature in storage tank does not reach set value you want, then the auxiliary electrical heater would start to assist heating
7) When temperature discrepancy sensed between solar collector and storage tank is below the set value in controller, the circulation pump shall stop automatically
8) If the water temperature has not reached the expected value set in the controller, then the auxiliary heating device would start to assist solar water heating

9) Eventually the water will get heated enough as expected ready for use







2. Solar Water Heater Features:

1. Especially for large-scale hot water heating system, supplying hot water for apartments, hotels, restaurants, schools, hospitals, factories, swimming pools, and other places requiring large amount hot water use.
2. Very economical and of good performance for a 15 years lifespan
3. Adaptable to different architecture structure installation
4. Anti-freezing system with good insulation to the pipelines
5. Easy installation and connection of solar collectors and pipelines
6. Able to be disigned to work with axuiliary heating devices to assist solar water heating


3. Solar Water Heater Technical Parameters:

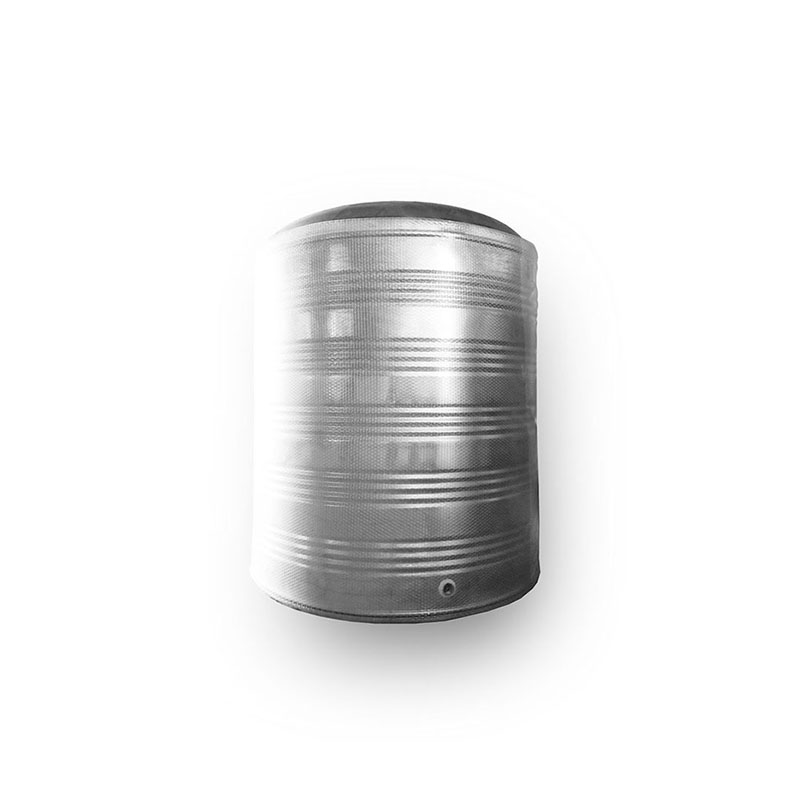

Solar Water Heater Water Tank

1. Inner tank material and thickness:stainless steel SUS304,0.4/0.5/0.6/0.7/0.8/1.0/1.2/1.5/2.0/2.5/3.0
2. Outer tank material and thickness: 0.31mm, SUS304 stainless steel or SUS-201,
3. Insulation layer material and thickness:high density polyurethane,50/100mm
4. Connection size: 1/2'or 3/4'' or 1'' or 1 1/4'' or 1 1/2''

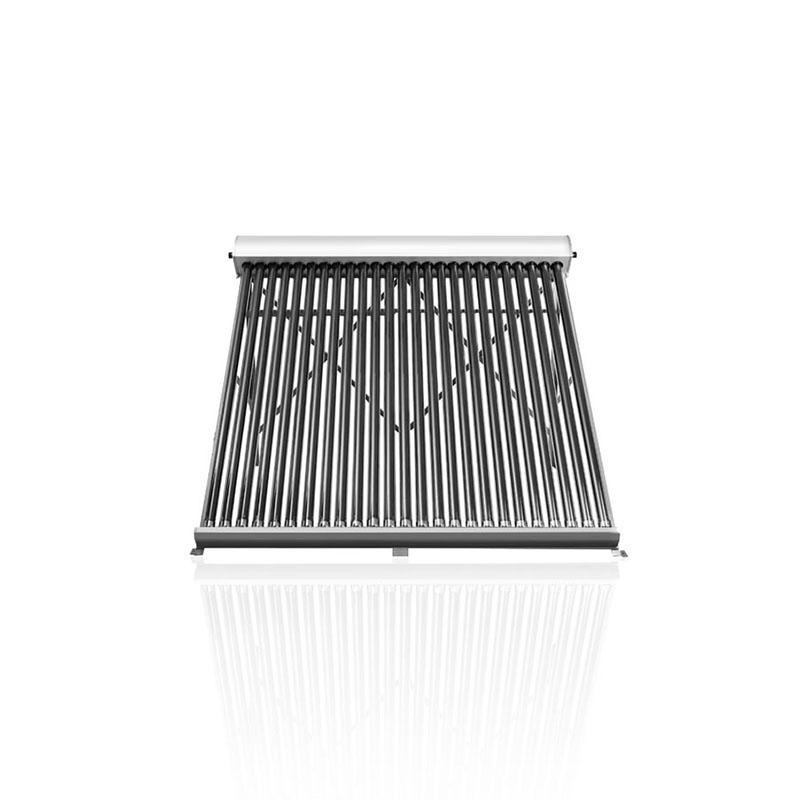

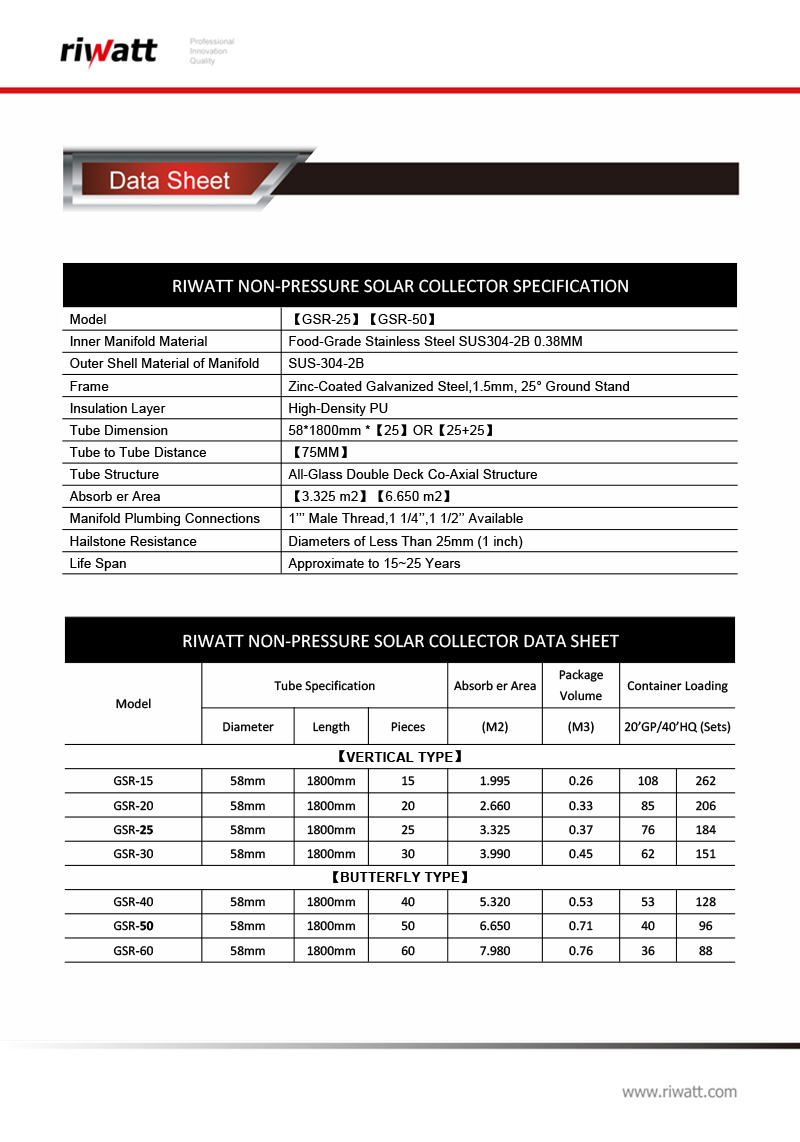

Solar Water Heater Vacuum Tubes

1. Tube structure:All-glass double deck co-axial structure,. 58*1800mm
2. Glass material:Borosilicate 3.3 glass
3. Sediment method:Tri-element magnetron sputtering plating (COPPER red tube)
4. Hail resistance:25mm
-5. Pressure-endure:0.6Mpa

Solar Water Heater Bracket Specification
1. Bracket material and thickness: stronger galvanized steel/ stainless steel
2. Bracket angle: 30 degree
3. Bracket bolts and nuts: stainless steel.
4. Solar Water Heater Bracket Warranty:

Solar collector & Water Tank: 5 years.
Solar vacuum tubes: 15 years

Accessories: 1 years
