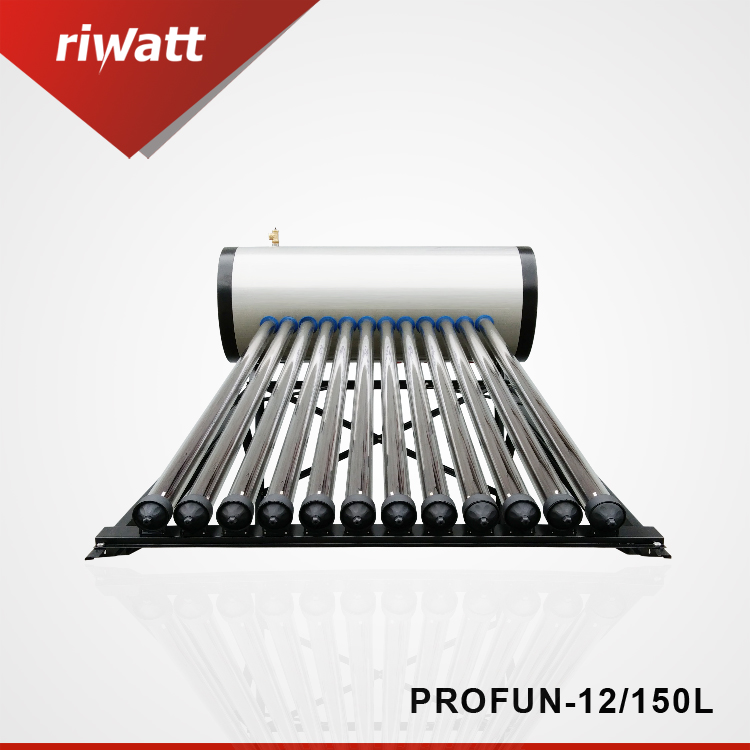

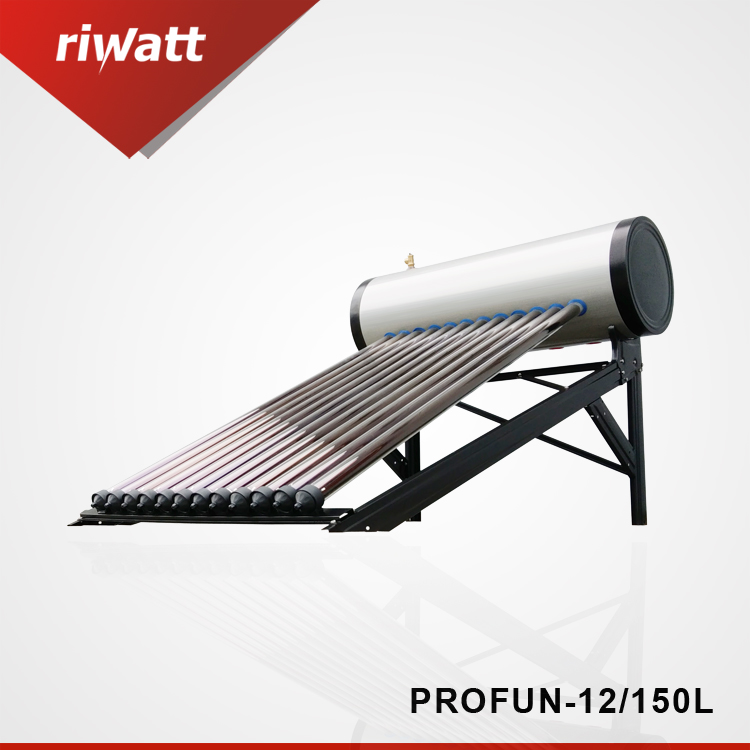

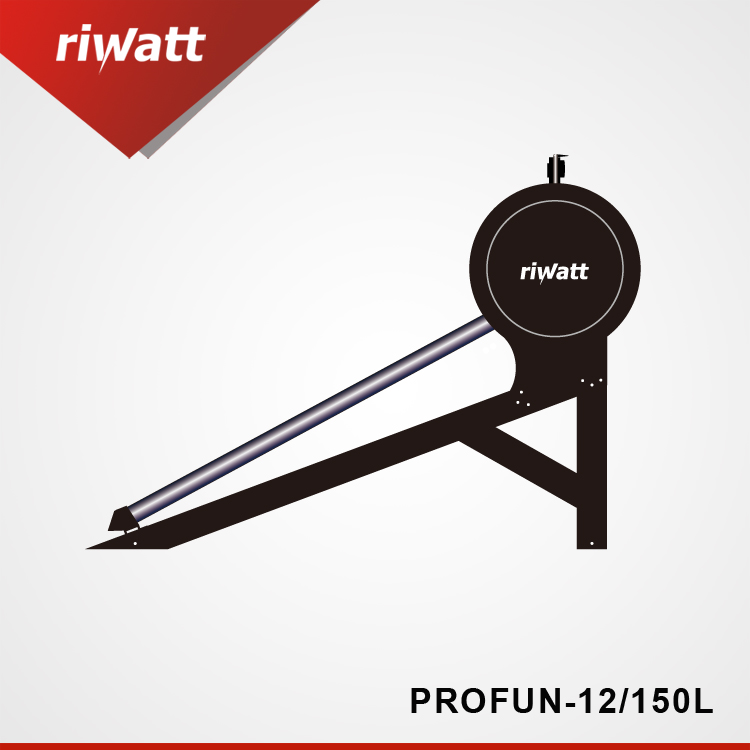

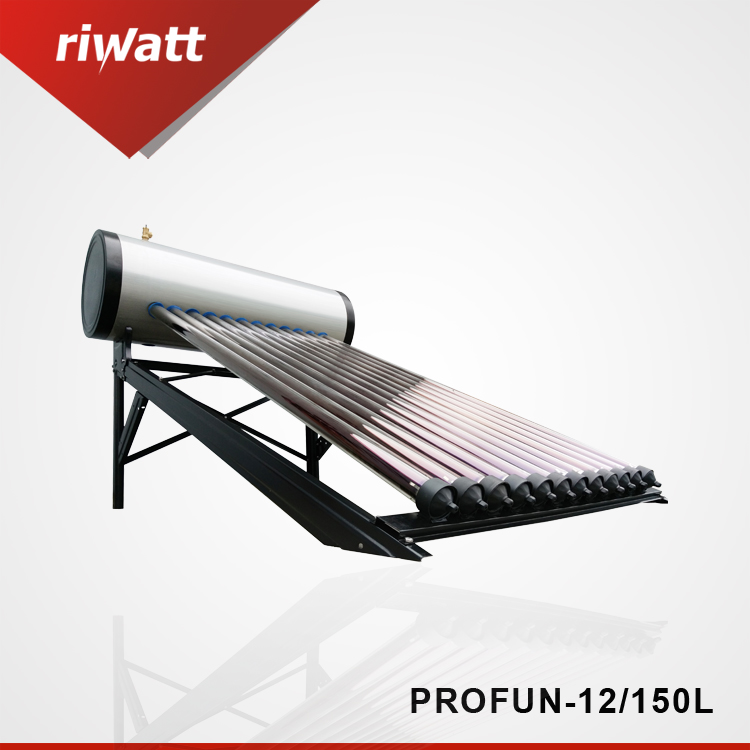

PROFUN-12-150L Pressurized Solar Water Heater

 Key Points:

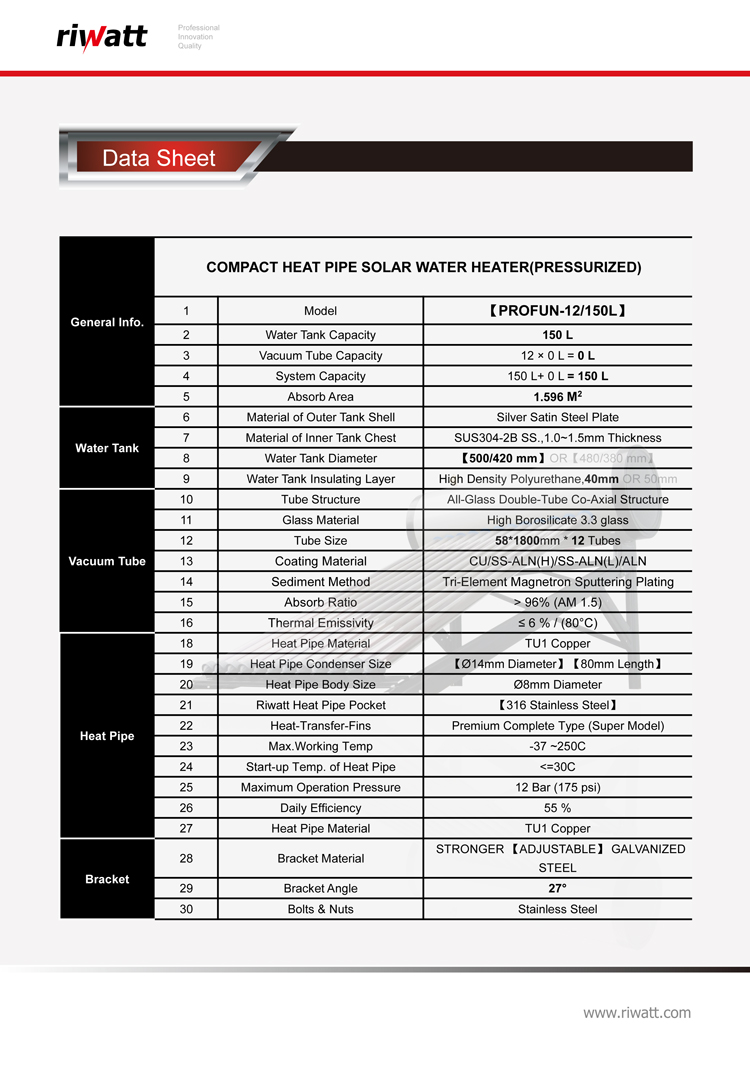

♦ Model : PROFUN-12/150L
♦ Vacuum Tubes: 58-1800mm,12 tubes,
♦ Inner Tank Material & thickness: SUS-304-2B,1.0~1.5mm
♦ Outer Tank Shell: high quality color painted steel.

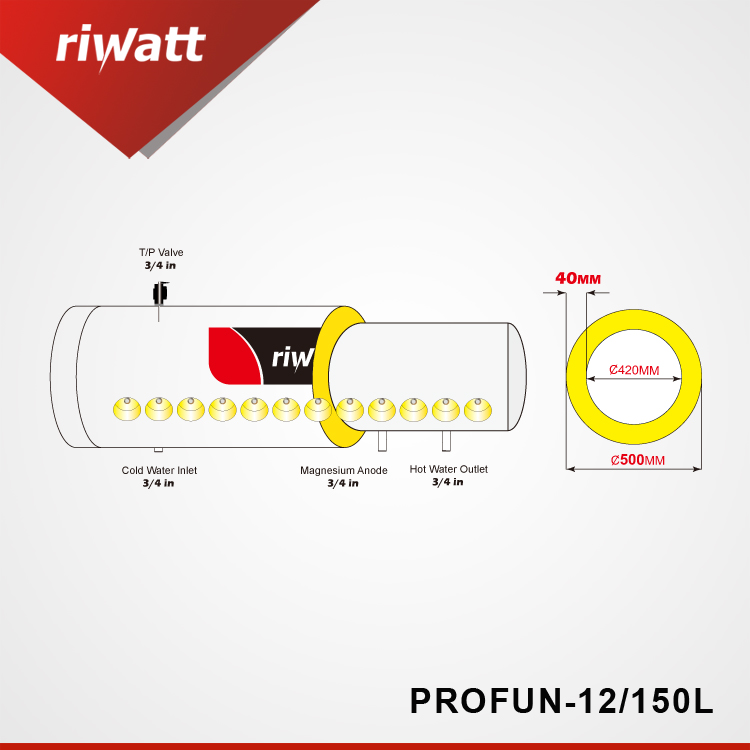

♦ Water Tank Size(inner/outer dia.) : 500/420mm
♦ Heat Pipe Material: TU1 copper,14*80mm
♦ Working Pressure:0.6Mpa
♦ Insulation : 40mm high density polyurethane

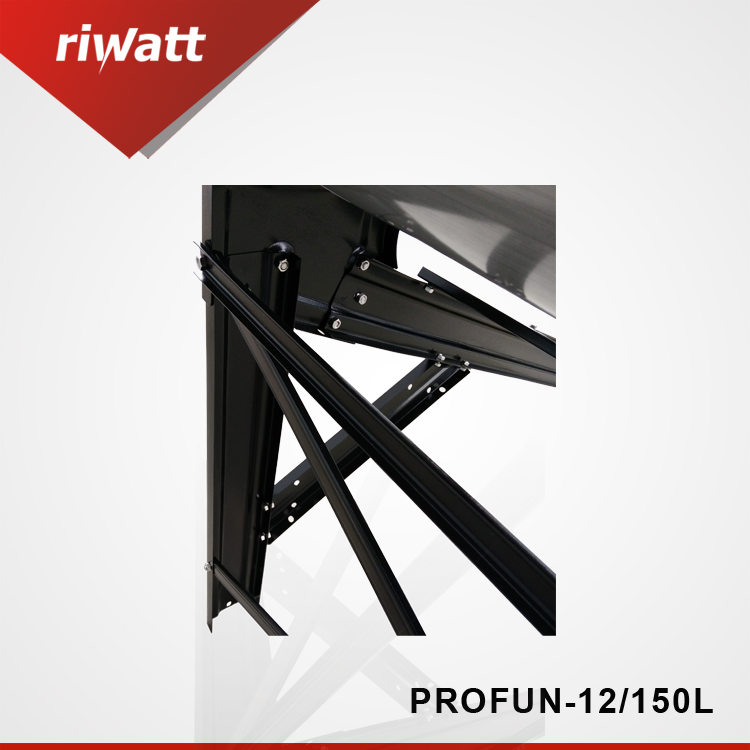

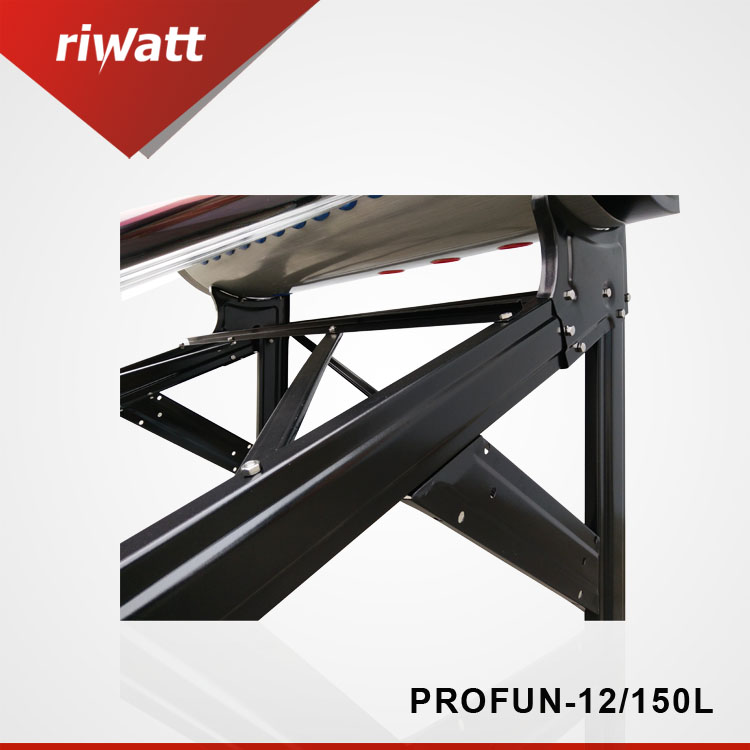

♦ Bracket : 1.35~1.5mm galvanized steel

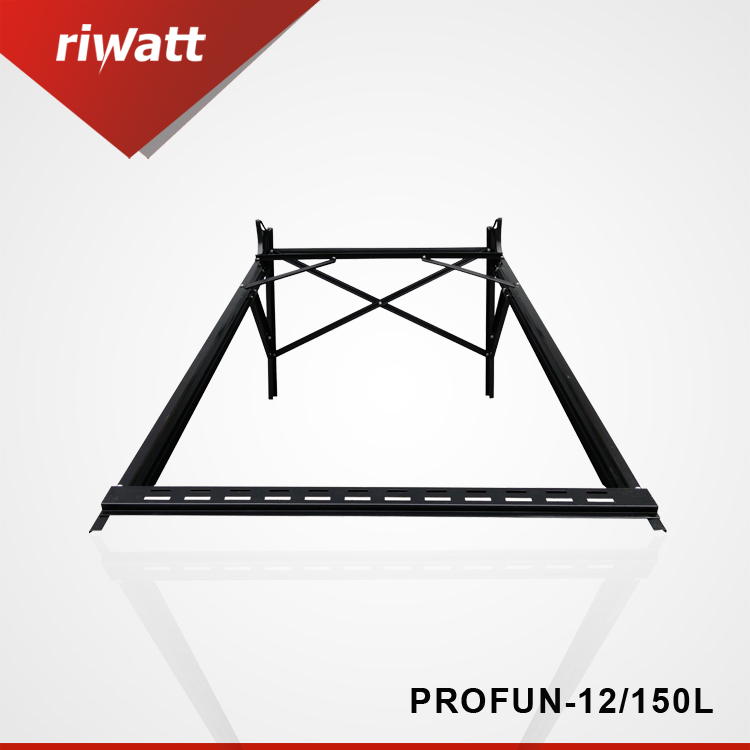

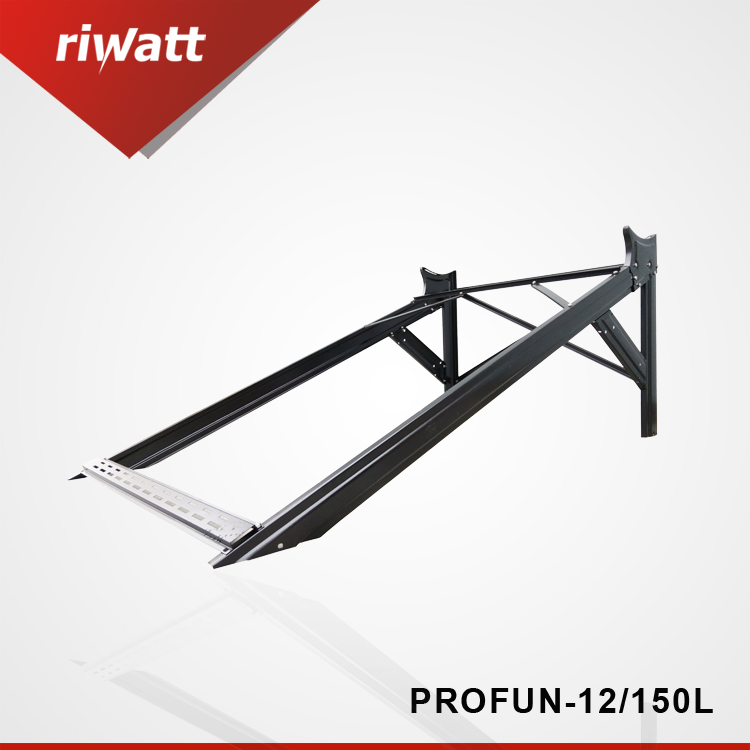

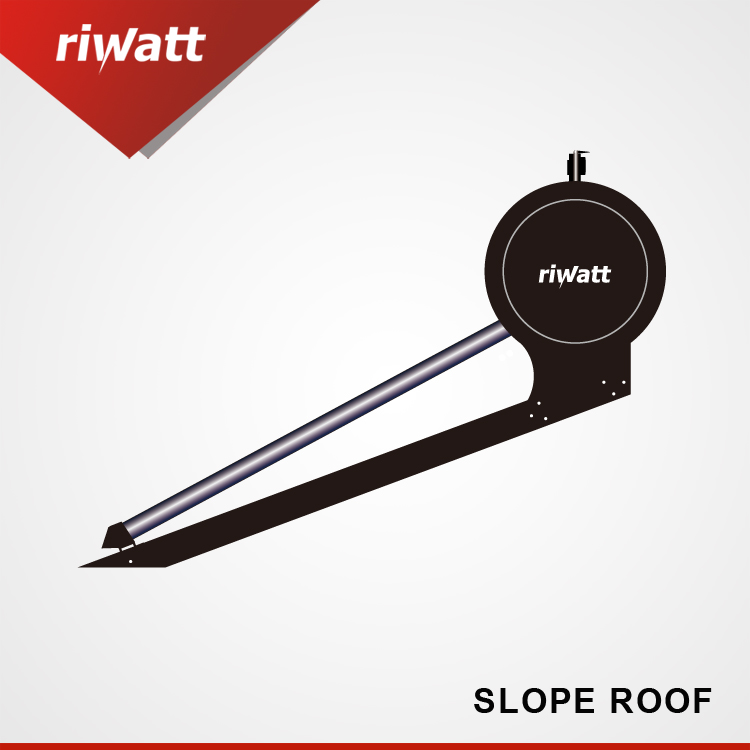

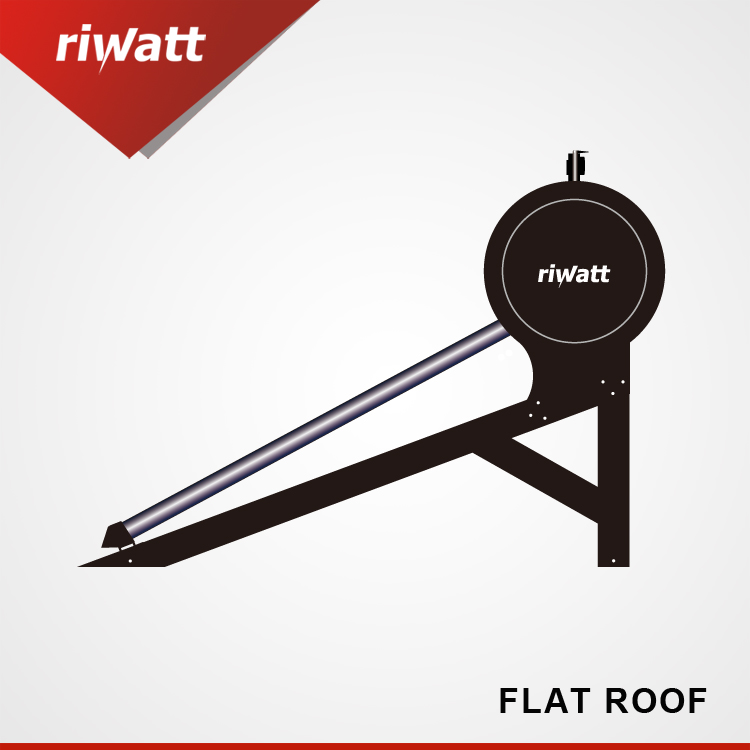

♦ SLOPE AND FLAT ROOF MULTIFUNCTIONAL BRACKET
